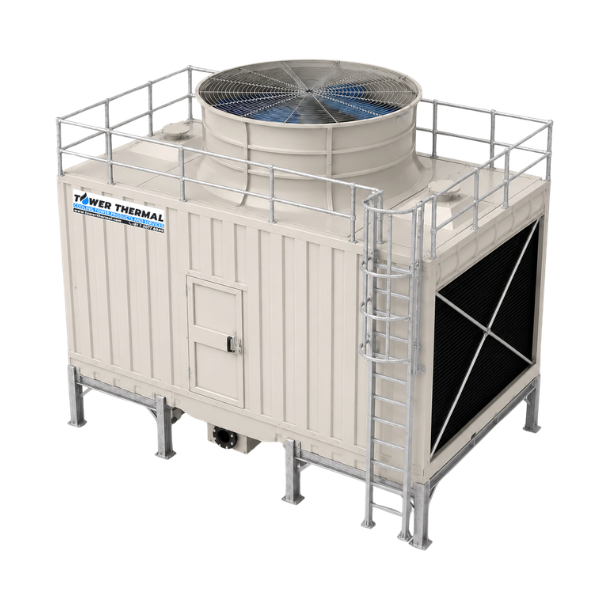

TXQF-20401-22-GI 2.2 kW Crossflow QUIETFLOW® Cooling Tower – Fibreglass / Galvanised Frame

The Tower Thermal TXQF-20401-22-GI QUIETFLOW® Crossflow Cooling Tower is a 2.2 kW fan-motor model for project-specific selection in commercial HVAC, condenser water and industrial process cooling applications. Its crossflow arrangement brings air horizontally through the fill while water flows downwards, allowing evaporative heat rejection.

Fibreglass / Galvanised Frame Construction

The GI variation combines a fibreglass reinforced plastic (FRP) casing and basin with a galvanised steel supporting frame. The external fibreglass panels and steel structure provide a mixed-material configuration for project-specific selection.

Key Features

• 2.2 kW fan motor in the TXQF-20401-22 model family
• Crossflow, induced-draft configuration in the Tower Thermal QUIETFLOW® range
• Fibreglass casing and basin on a galvanised steel frame
• Open-circuit evaporative heat rejection
• Selection support for the required operating duty and installation conditions

Typical Applications

Applications for selection include water-cooled chillers, commercial air conditioning, condenser water systems, manufacturing processes and heat exchanger circuits. Final suitability depends on the required thermal duty, water quality and site conditions.

Project Selection and Technical Assistance

The 2.2 kW rating identifies fan motor power, not the tower's heat rejection capacity. Cooling tower selection depends on water flow rate, entering and leaving water temperatures, and design wet-bulb temperature. Material suitability should also be assessed against the water treatment regime and operating environment.

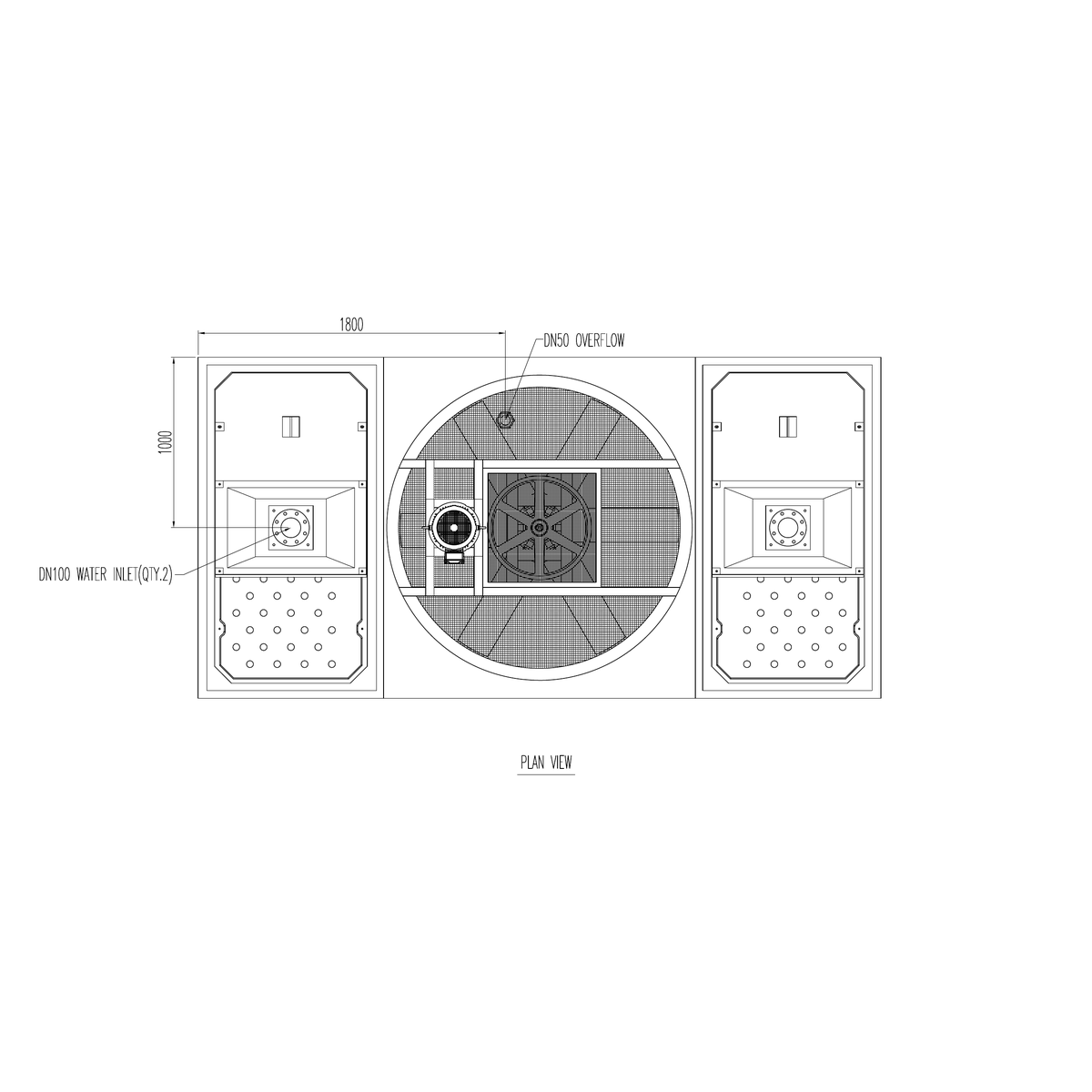

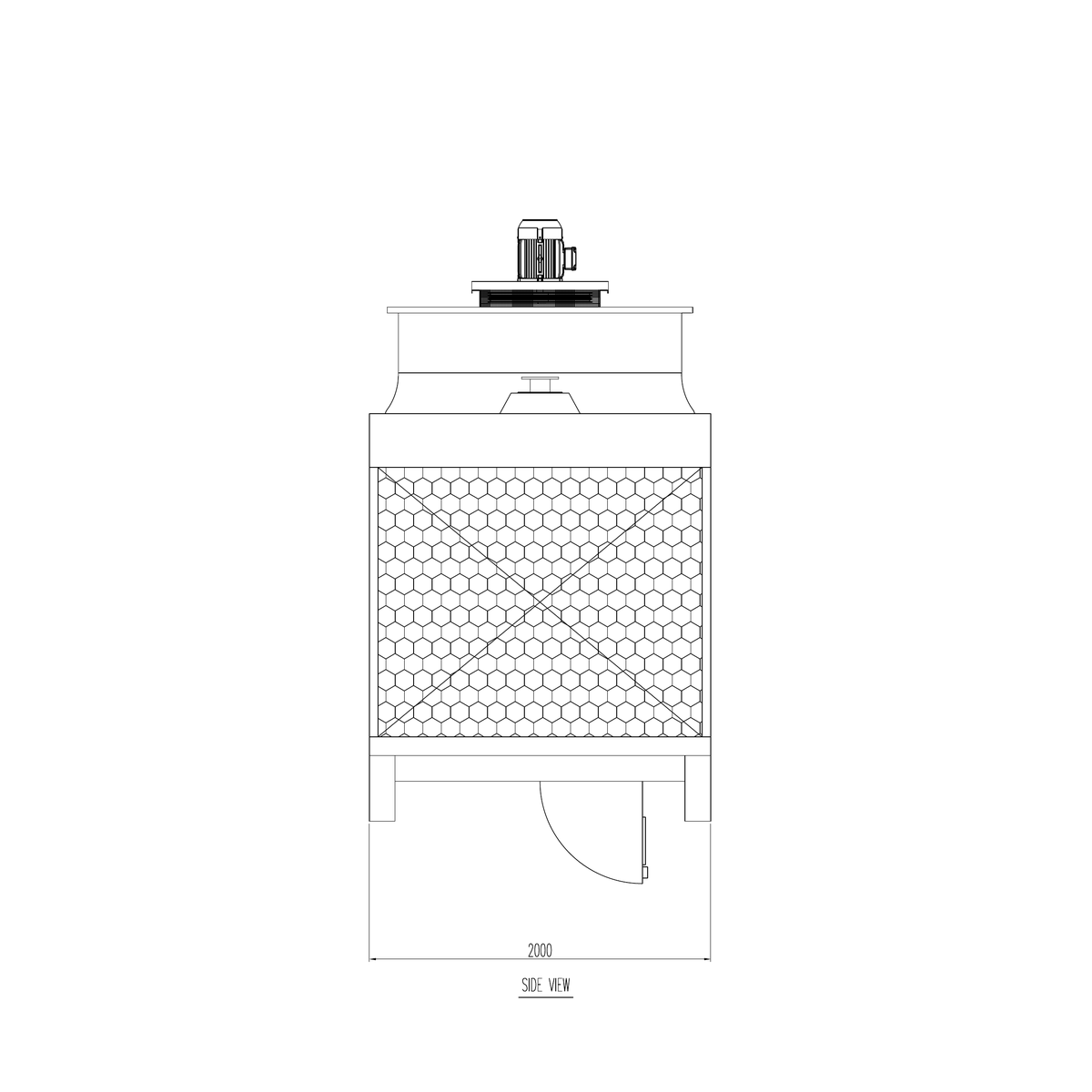

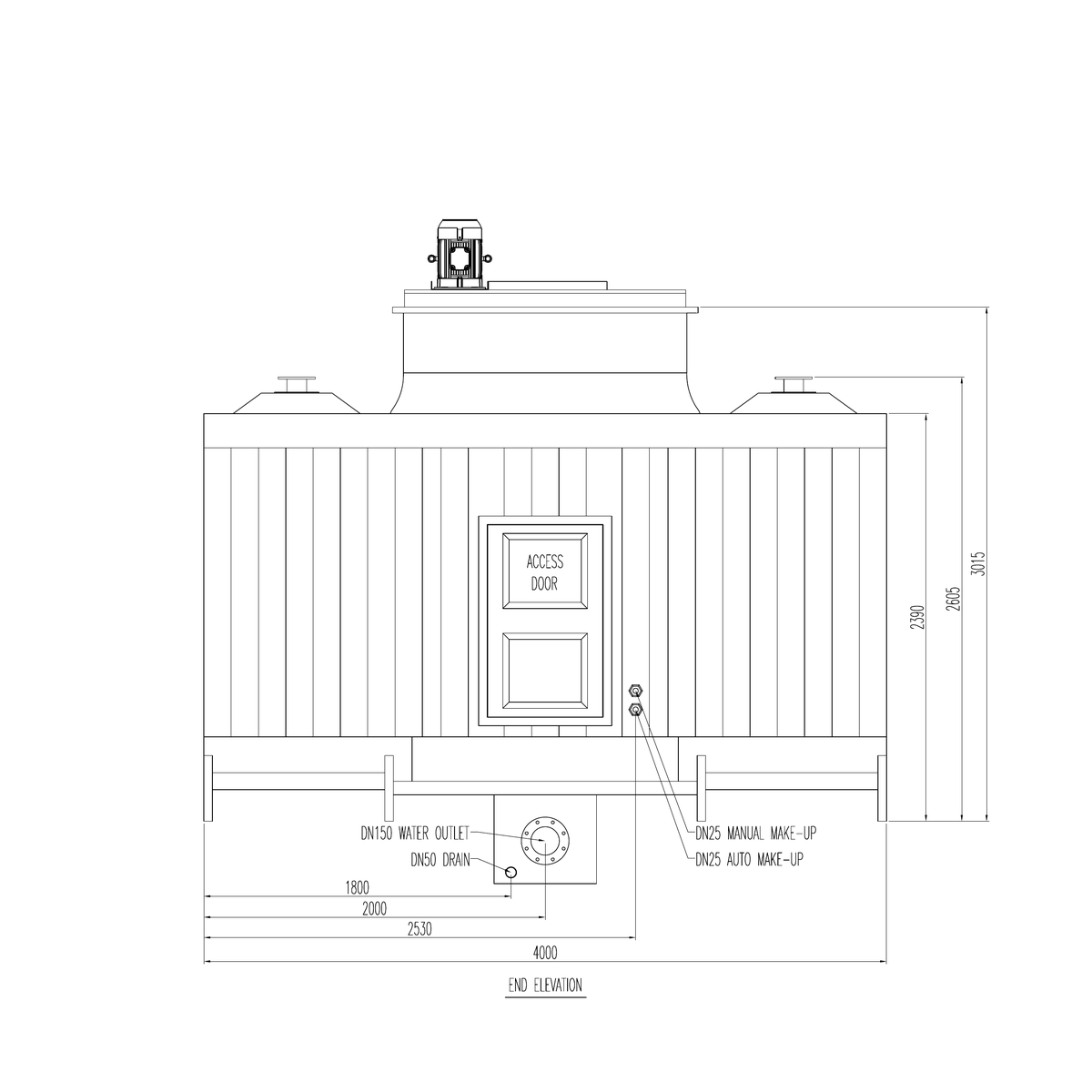

Request a quote for TXQF-20401-22-GI. Contact Tower Thermal with your flow rate, hot and cold water temperatures, design wet-bulb temperature, available space and any project noise requirements. Ask for the model-specific technical drawing when confirming your selection.
