Are you looking for cooling towers installation services? Then Tower Thermal should be your choice.
At Tower Thermal, our services include the reconstruction of all types of cooling towers, consultancy, and the supply of various fans, gearboxes, drive-shafts, etc. Turnkey installations are available for tower, piping, electrical and structural supports.
We utilize only the best quality components and advanced hardware in the production procedure to keep up their perfection and sturdiness at our customers’ end.
Furthermore, the materials used in the process are procured from the certified vendors of the market. Whatever your Cooling Tower needs, our team is ready to find the most cost-effective and efficient solution.
Scope of work:
The scope of work is for a comprehensive engineered approach to a complete turnkey solution for the supply and installation of a new cooling tower whether a new site or replacement
Preliminary work comprises of a site survey, design work, drawings as required and laser leveling mating foundations. This sets up a correct start base for a smoother installation. The following scope of work is for the cooling tower to be installed with cranage, piping, electrical, supports, removal and disposal as applicable, and commissioning. Where possible, we always strive to provide a safer service height by mounting the cooling tower directly onto mating concrete or steel surfaces instead of raised supports. Accessories for variable speed drive for fan speed control, pumps and water treatment are available.
A TYPICAL SCOPE OF WORK SPECIFICATION
Each installation scope varies from site to site and needs to be individually assessed and specified, but following is a typical scope of work.

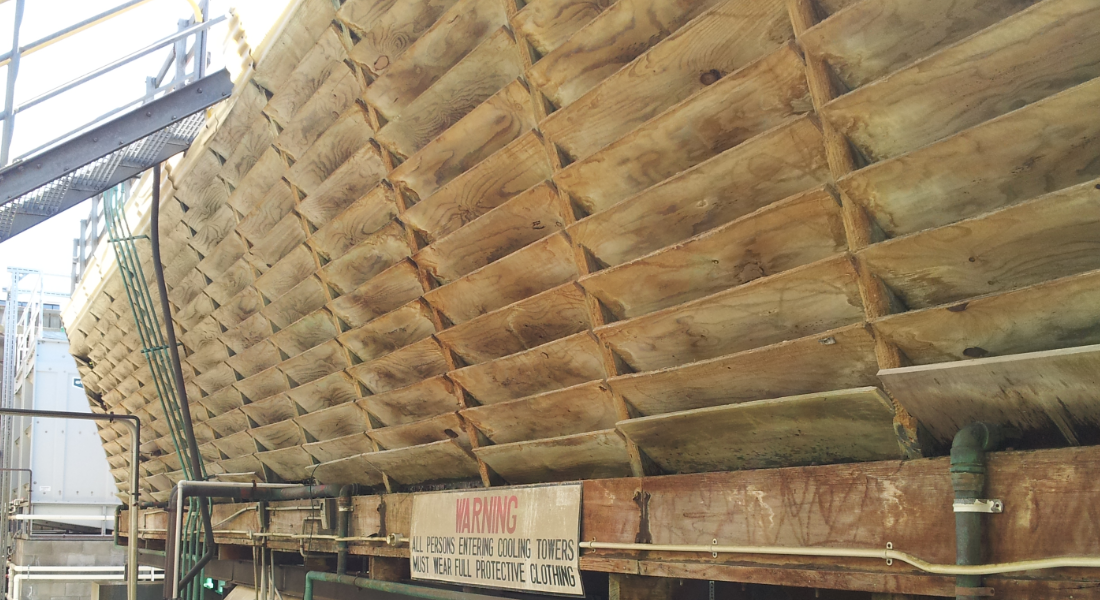

Replace an existing steel/fiberglass/timber cooling tower with a new Tower Thermal Quietflow® Series, a fiberglass cooling tower of equivalent heat rejection capacity.
Scope of work to include:
- Laser level existing concrete ground pad for the supply of leveling packers and rubber waffle pads for CT and pump. The maximum deviation of +/-50 mm. Excluded for existing steel/concrete basins/intended support structures – assumed to be level.
- New steel foundations; structurally design checked and certified where applicable or re-use and modify existing steelwork.
- Remove old CT, redundant pipe, and steelwork to ground.
- Place new CT into-situ.
- Reconnect pipe plus new pipe, brackets, isolating valves, check valves as required.
- Connect drain and overflow to sewer; mains to water make-up.
- Reinstate, modify, resupply any existing walkways, and grating as required.
- Cranage for unloading and in-situ placement.
- General water side commissioning. Excludes water treatment.
- Demolish and remove from site old CT, old materials, and debris.
WHY CHOOSE TOWER THERMAL?
- Unrivaled Experience: With over 20 years in the industry servicing and manufacturing cooling tower units, we’ve carried out projects for companies all over Australia.
- Crossflow Design: Through our design, manufacturing, and testing, we deliver a product that is low profile, low noise, efficient, affordable, and easy to maintain.
- Deal Direct with the Manufacturer: We manufacture our products, so you can expect prompt quotes and technical advice with the excellent product back up spares and engineering support.
Contact Us
We are happy and eager to hear your cooling tower inquiry. Please contact us and see how we can be of service. We are always available or not too far away and will respond promptly.
